DESCRIPTION

Basic Info

Model NO.	LRY-330/470
Type	Laser
Embossing Structure	Rotary Letterpress
Structure	Stacked
Application	Flexible Packaging Printing
Automatic Grade	Semi-Automatic
Printing Speed	60m/Min
Transport Package	Export Standard Wooden Case
Specification	5colors
Trademark	ZONTEN
Origin	China
HS Code	8443
Production Capacity	60sets Per Year

Product Description

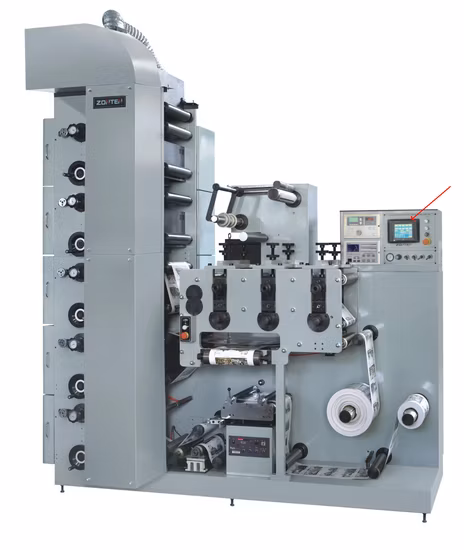

LRY330/470 Flexo Printing Machine:

Performance and Characteristics:

1. The main motor adopts imported inverter to govern a stepples speed adjustment.
2. Feeding and rewinding are controlled through magnetic particle brake and clutch(Japanese Mitsubishi auto tension controller).
3. Un winder system is controlled by edge guide sensor.
4. Adopt ceramic anliox roller which offers durability, wear resistance and corrosionresistance, also is more efficient on production by reducing the times of changing rollers.
5. The printing units are all equipped with a group of infrared dryers respectively.
6. Each IR dryer device of printing unit is interchangeable to UV dryer.
7. Un winder and re winder adopt air core holder.
8. The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units continue to printing.
9. The roll feeding, printing, UV vanish, auto infrared drying, laminating and rewinding can be processed in one pass. It has characterized by wide application, fast printing speed and high economic efficiency Ink will not contaminate environment. So it is an idea printing machine for the business form, Tag and high end pressure sensitive label.

Optionals:
Cold foil device
Delam&Relam device
turn bar device for backside printing
UV dryer
Single stacker

Technical Specifications:

Model	LRY-330	LRY-470
Max. Web width	330mm	470mm
Max. printing width	320mm	450mm
Printing repeat	180mm-380mm/min	180mm-380mm/min
Color	2~6	2~6
Thickness of substrate	0.1~0.3mm	0.1~0.3mm
Machine speed	10m-80m/min	10m-80m/min
Max. unwind diameter	600mm	600mm
Max. Rewind diameter	550mm	550mm
Main motor capacity	2.2kw	2.2kw
Main power	380V/AC 3 phase 50Hz	380V/AC 3 phase 50Hz
Overall dimension(L×W×H)	3000×1500×3000	3000×1700×3000
Machine weight	2000kg	2300kg
*Its overall dimension and manufacturing Process are subject to change without further notice.
