Rokin Brand Making Paper Bag Making Machine Paper
Overview Product Description Paper bag machine series is applied to produce many types of paper bags without handles, su
Send your inquiryDESCRIPTION
Basic Info
Model NO. | RKFD-330 |
Speed | High |
Width | 130-330mm |
Size and Shape | L8600*W3700*H1800mm |
Long | 260-530mm |
Weight | 8500 Kgs |
Material | Paper |
Usage | Shopping Bag, Garment Bag, Leisure Food Bag, Bread Bags, Airsickness Bag, Fruit Bag |
Paper Bag Cutting Length (C) | 260-530mm |
Paper Bag Width | 130-330mm |
Paper Bag Bottom Width | 70-180mm |
Paper Roller Width | 430-1050mm |
Max. Paper Roller Diameter | 1200mm |
Paper Roller Inner Diameter | 76mm |
Transport Package | Wooden Package |
Specification | customized |
Trademark | ROKIN |
Origin | Wenzhou, Zhejiang |
HS Code | 8441200000 |
Production Capacity | 200 Sets |
Product Description
Product Description
Paper bag machine series is applied to produce many types of paper bags without handles, such as food paper bag, shopping bags and so on.
Samples
Model | RKFD-190 | RKFD-330 | RKFD-450 | RKFD-450B | RKFD-550 |
Paper bag cutting length (C) | 190-370mm | 260-530mm | 260-530mm | 360-800mm | 360-800mm |
Paper bag width (W) | 80-190mm | 130-330mm | 150-450mm | 220-450mm | 220-550mm |
Paper bag bottom width (H) | 50-100mm | 70-180mm | 70-180mm | 100-250mm | 100-250mm |
Paper thickness | 45-120g/m2 | 60-160g/m2 | 60-150g/m2 | 80-160g/m2 | 80-160g/m2 |
Max. Paper bag speed | 150-200pcs/min | 150-200pcs/min | 150-200pcs/min | 150-200pcs/min | 150-200pcs/min |
Paper roll width | 290-610mm | 430-1050mm | 570-1290mm | 670-1430mm | 670-1630mm |
Air supply | 0.6-1.2Mpa | 0.6-1.2Mpa | 0.6-1.2Mpa | 0.6-1.2Mpa | 0.6-1.2Mpa |
Air consumption | 0.12m3/min | 0.12m3/min | 0.12m3/min | 0.12m3/min | 0.12m3/min |
Power | 11 KW | 8 KW | 8 KW | 15 KW | 15 KW |
Weight | 5000 KGS | 8500 KGS | 10000 KGS | 12000 KGS | 14000 KGS |
Dimension | L8*W3*H2m | L9.2*W2.1*H2m | L9.2*W2.45*H2m | L11*W3.4*H2m | L11*W3.4*H2m |
Detailed Photos
Company Profile
Wenzhou Rokin Machinery CO. Ltd is the manufacturer of full automatic paper bag machine, square bottom paper bag machine, v bottom paper bag machine, case making machine, cardboard slitting machine and related auxiliary equipment, etc.
PRODUCT GUIDE
PRODUCT PACKAGING
Related Products
-

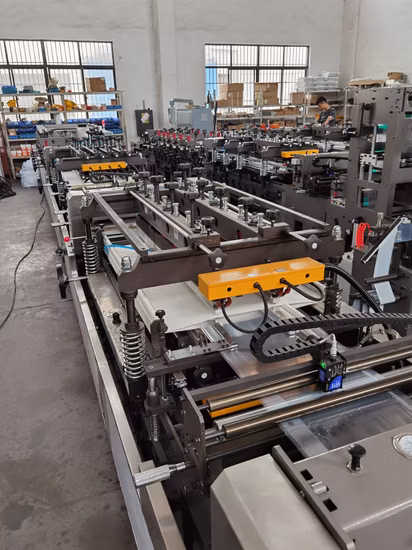

Specialized Designed Zipper Bag Making Machine Packaged with Stretch Film
-

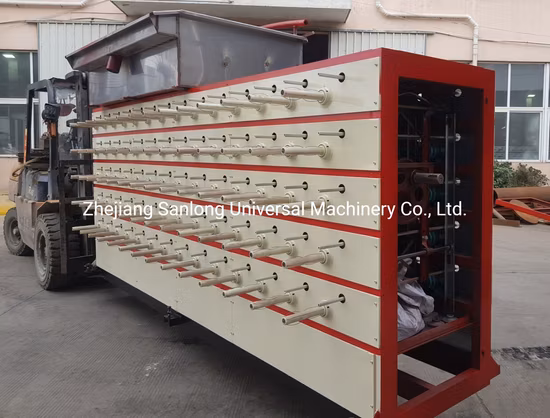

Plastic Tape Extruder (SJ-L Series)
-
